STILTS & PARTS
Product Name
Item Number: DST 14-22
Description
D14″ x 22″ Dura-Stilts III w/ strap kit
Contact Appalachian Sales for current pricing and ordering
Product Name
Item Number: DST 18-30
Description
D18″ x 30″ Dura-Stilts III w/ strap kit
Contact Appalachian Sales for current pricing and ordering
Product Name
Item Number: DST 24-40
Description
D24″ x 40″ Dura-Stilts III w/ strap kit
Contact Appalachian Sales for current pricing and ordering

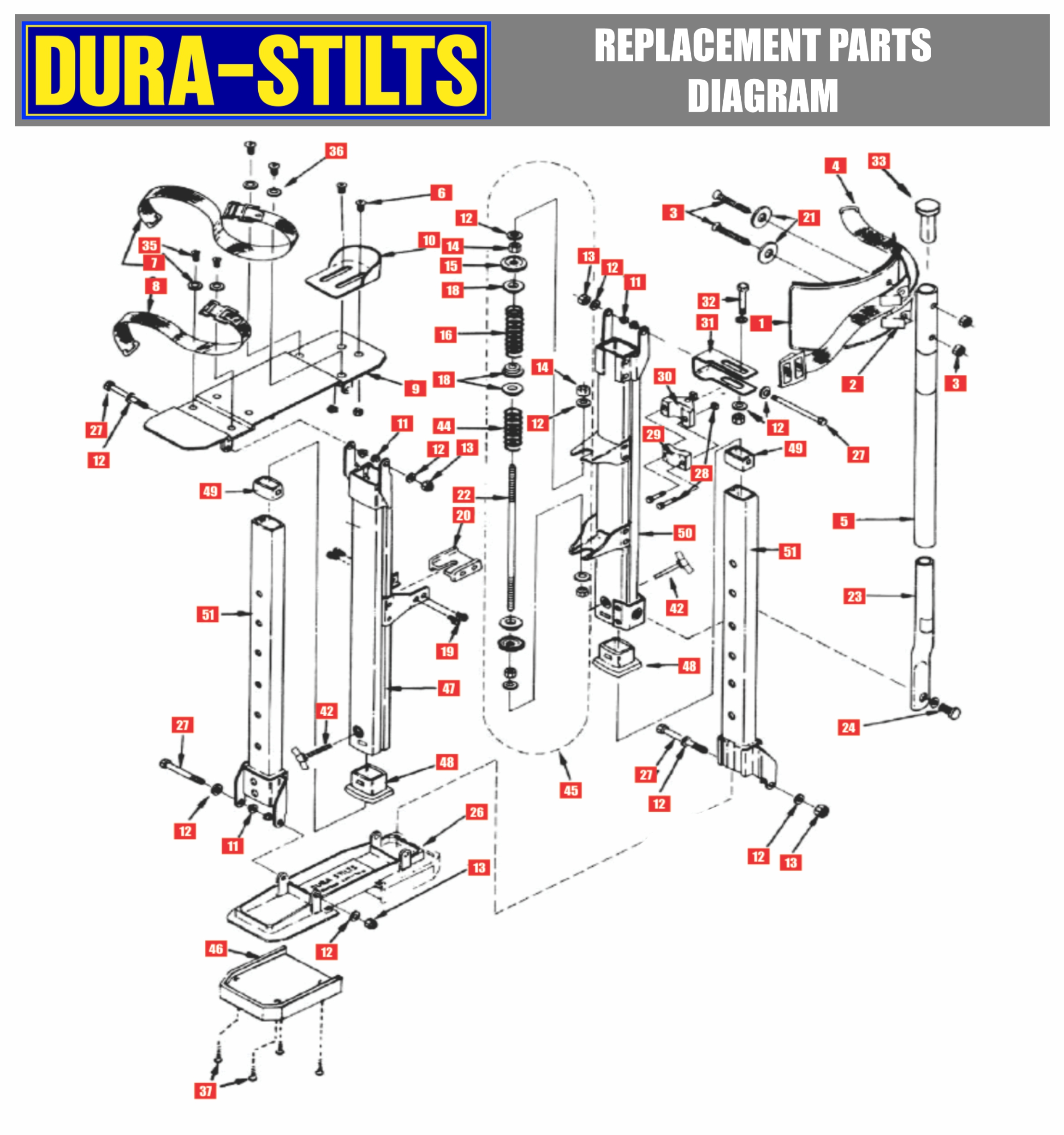

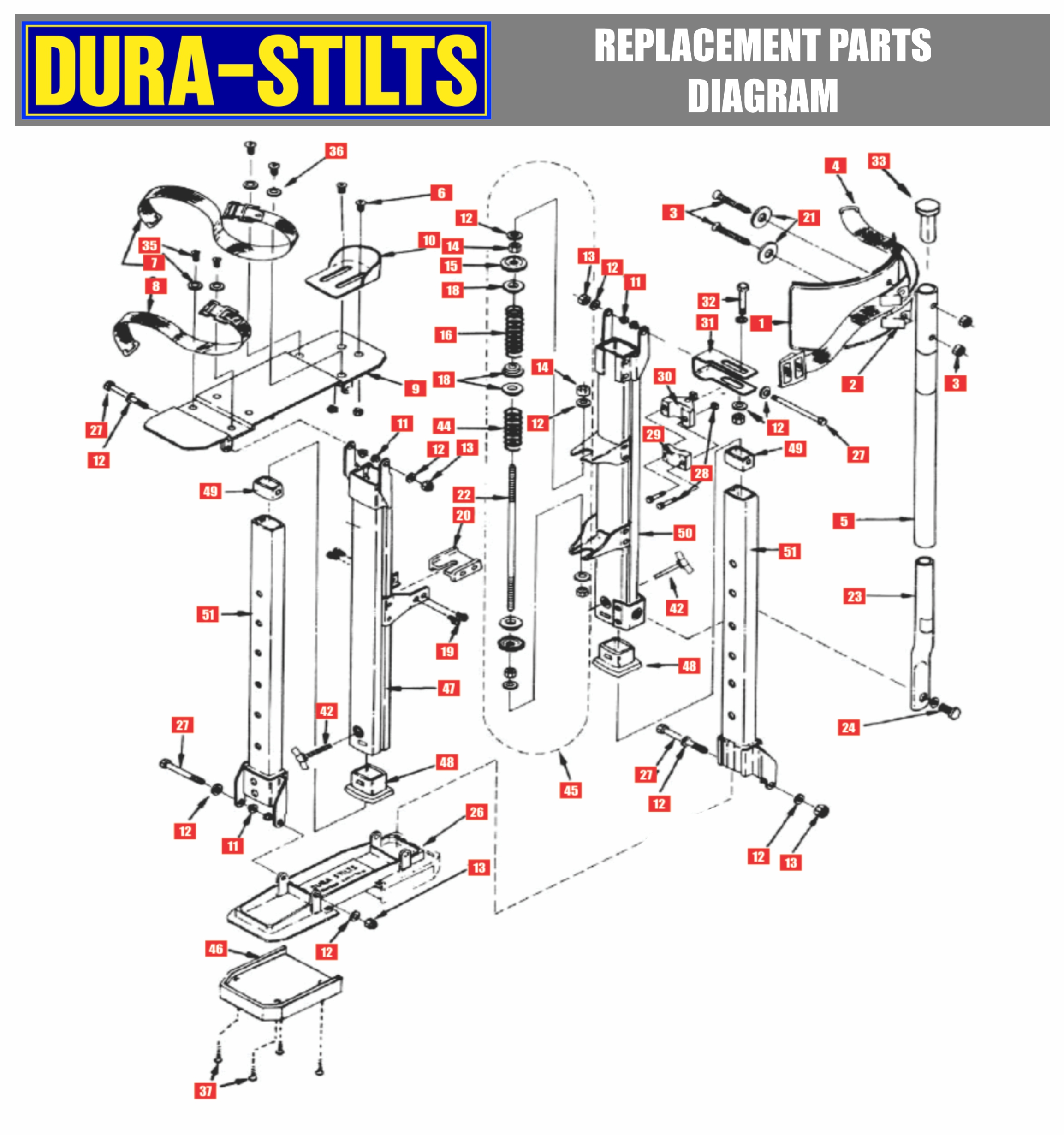

DSTLDP16 – Upper Coil Spring (Dark Brown)
DSTLDP18 – Nylon Spring Bearing
DSTLDP19 – 8″ x 3/8″ Self Threading Screw
DSTLDP20 – Spring Driver
DSTLDP21 – Leg Band Support Washer
DSTLDP23A – Lwr Strut (14-22 F18)
DSTLDP23B – Lwr Strut (18-30 F18)
DSTLDP23C – Lwr Strut (24-40)
DSTLDP24 – 1/4″ 20 x 1/4″ Cap Screw
DSTLDP26 – NYL Floor Plate Only
DSTLDP26B – NYL Floor Plate w/Screw
DSTLDP27 – 1/4″ 20 x 3-1/8″ Cap Screw
DSTLDP28 – 1/4″ 20 x 1-5/8″ Screw Nut
DSTLDP29 – Tube Clamp (A)
DSTLDP30 – Tube Clamp (B)
DSTLDP31 – Clamp Bracket
DSTLDP32 – 1/4″ 20 x 1-5/8″ Screw/Hex 28
DSTLDP33 – Upper Strut Cap/Plug
DSTLDP34 – Shoe Mounting Bolts
DSTLDP35A – Strap Mnt. Screw/Washer
DSTLDP36 – No. 8 Strap Washer
DSTLDP37 – 8 x 1/2″ Sole Screw
DSTLDP42 – Wing Bolt
DSTLDP44 – Lower Coil Spring (Light Brown)
DSTLDP45 – Entire Spring Assembly
DSTLDP46A – Sole w/Screws Nylon Pl
DSTLDP47A – Forward Leg Ext (14-22)
DSTLDP47B – Forward Leg Ext (18-30)
DSTLDP47C – Forward Leg Ext (23-40)
DSTLDP48 – Lrg Nylon Ext Tube Sleeve
DSTLDP49 – Sml Nylon Ext Tube Sleeve
DSTLDP50.124 – Left rear adjustable leg
DSTLDP50.224 – Right rear adjustable leg
DSTLDP50A 2 – Right Adj Leg Extr 14-22
DSTLDP50A1 1 – Left Adj Leg Extr 14-22
DSTLDP50A2 1 – Right Adj Leg Extr 14-22
DSTLDP50B 2 – Right Adj Leg Extr 18-30
DSTLDP50B1 1 – Left Adj Leg Extr 18-30
DSTLDP50CL 1 – Left Adj Leg Extr 23-40
DSTLDP51A – Extension Tube (14-22)
DSTLDP51B – Extension Tube (18-30)
DSTLDP51C2 – Extension Tube (23-40)
DSTLDP5A – 1-1/8″ OD Upper Strut Tube
DSTLDP5B – 1-1/8″ OD Strut Tube
DSTLDSADP – Stilt Adaptor Kit
DSTLSP22 – 1/4″ x 7 7/8″ Stud Bolt
DSTPLDP23B – Lwr Strut (18-30 F20)
