SHEATHING INSULATION BOARD
John Manville’s complete line of spray polyurethane foam (SPF) insulation solutions provides superior thermal energy efficiency, as well as advanced air and sound control. SPF insulation completely covers gaps and voids, works in hard-to-insulate areas and can exceed the performance of traditional fiberglass insulation. Both Johns Manville SPF product categories, open-cell and closed cell, deliver high yield, superior performance and exceptional sprayability.
AP Foil Faced Continuos Board
Johns Manville AP™ Foil-Faced Polyiso Foam Sheathing boards are available in R-Values up to R-28 and offer a reflective foil facer on one side and a non-reflective facer on the other. AP Foil provides exceptional heat, moisture and air control and, when installed correctly, eliminates all major thermal bridges that cause heat loss. The rigid continuous insulation board allows for maximum wall and worksite efficieny.
AVAILABILITY & SPECS DOWNLOAD
MSDS
Contact Appalachian Sales for current pricing and ordering
CI-MAX Continuous Board
Johns Manville CI Max® Polyiso Foam Continuous Insulation is available in R-Values up to R-26 and provides a layer of insulation to reduce thermal bridging and improve energy efficiency. CI Max Continuous Insulation is designed for exposed interior applications and is approved for use without a thermal barrier. It is suitable for wall or ceiling applications in residential, commercial, agricultural and industrial buildings.
AVAILABILITY & SPECS DOWNLOAD
MSDS
Contact Appalachian Sales for current pricing and ordering
As part of the Barricade System, Thermo-Brace® exterior wall sheathing is a vital component of protecting the wall envelope and preserving the integrity of what’s inside, i.e. insulation, studs, and drywall. OSB sheathings tend to be spongy due to their composition. If OSB gets wet after installation, it can swell and soak up water, creating gaps and cracks for more water to enter. Because of increased fasteners and Thermo-Brace’s built-in water resistance, a tight seal is formed to the framing members, producing excellent protection against air and water infiltration.

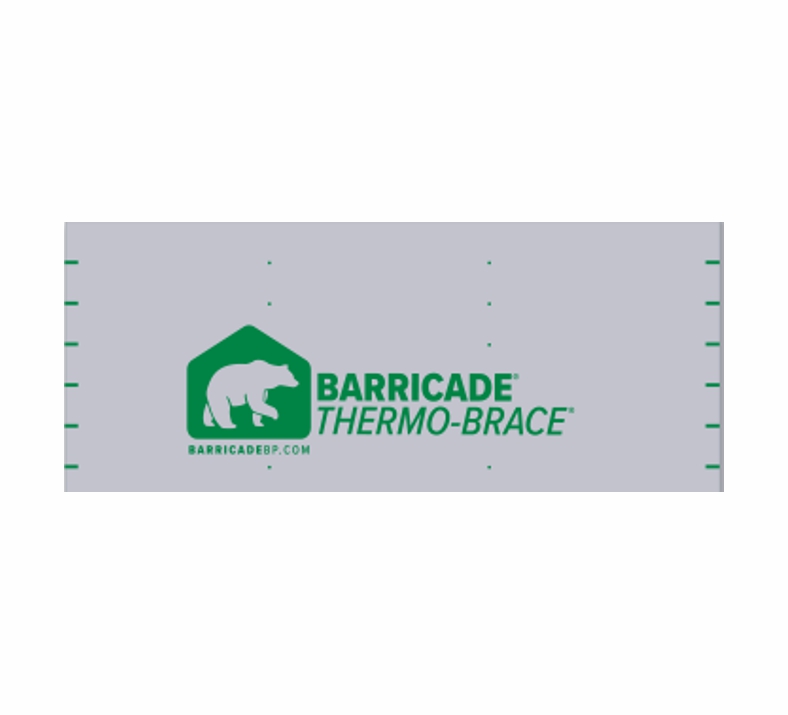

Barricade Thermo-Brace ECO Green
Thermo-Brace® Green Structural Sheathing and PermaBrace Green Structural Sheathing are composed of pressure-laminated plies consisting of high strength cellulosic fibers. These fibers are specially treated to be water resistant and are bonded with a proprietary water resistive adhesive. A protective polymer layer is applied on both sides of the panel, and foil facings may be additionally applied on one or both faces
Contact Appalachian Sales for current pricing and ordering
Barricade Thermo-Brace ECO Orange
Thermo-Brace® Orange Structural Sheathing is composed of pressure-laminated plies consisting of high strength cellulosic fibers. These fibers are specially treated to be water-resistant and are bonded with a proprietary water-resistive adhesive. A protective polymer layer is applied on both sides of the panel and additionally, foil facings may be applied on one or both faces.
Contact Appalachian Sales for current pricing and ordering

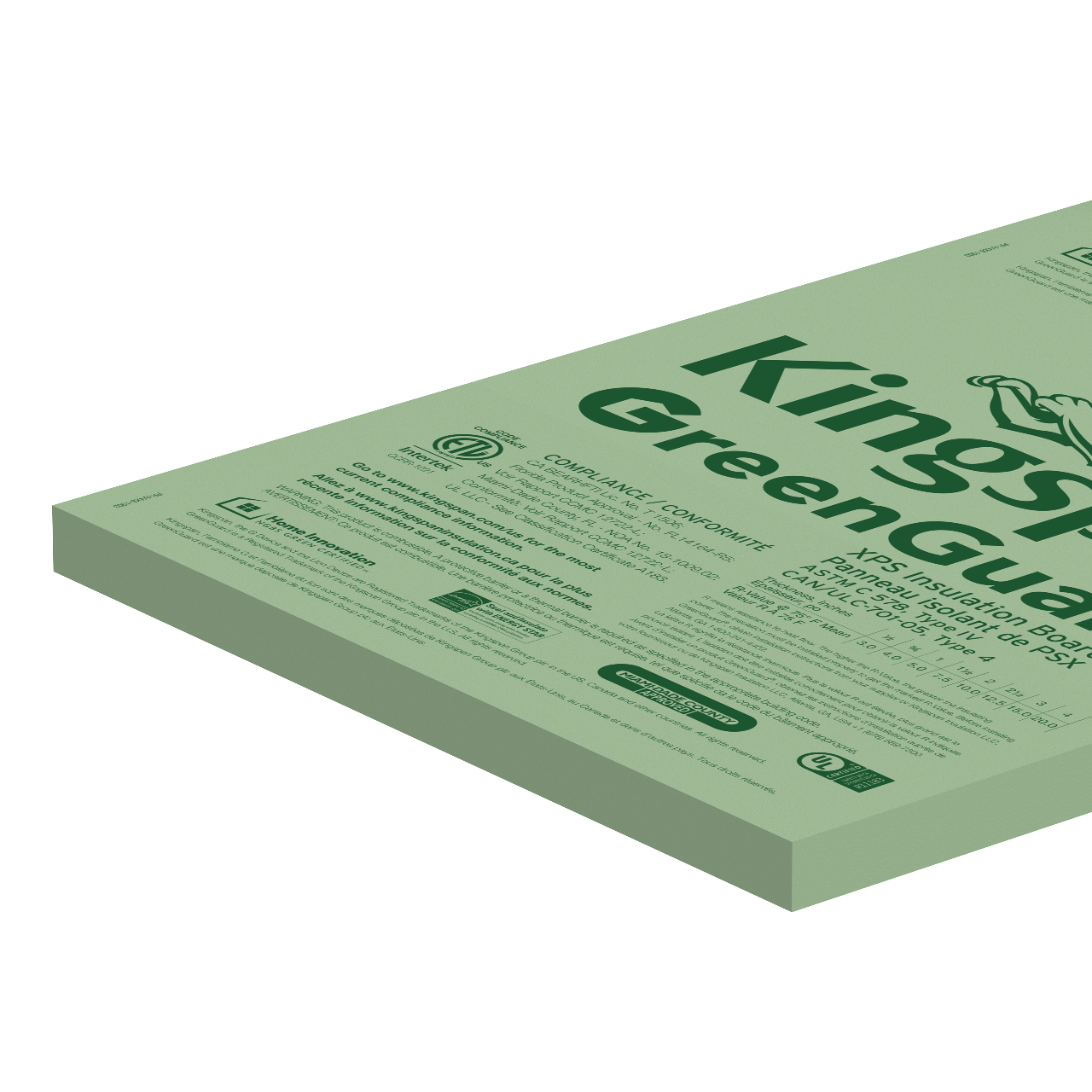

Kingspan GreenGuard® Type IV XPS Insulation Board comprises closed–cell extruded polystyrene (XPS) with a minimum compressive strength of 25 psi. It has high water resistance and an R–value of 5.0 per inch of thickness. It retains its insulating properties over time. Use this insulation for below slab, cavity wall, and foundation applications. It is available in a square edge board, ship–lap edge board, pre-cut 16 inch wide board and a score board.
GreenGuard Type IV Insulation Board
25lb extruded polystyrene (XPS)
Contact Appalachian Sales for current pricing and ordering
